Longines Equestrian Tour China 2014 Horse Racing Tent

Outdoor Sports Event Tent for Horse Racing

Über das Projekt

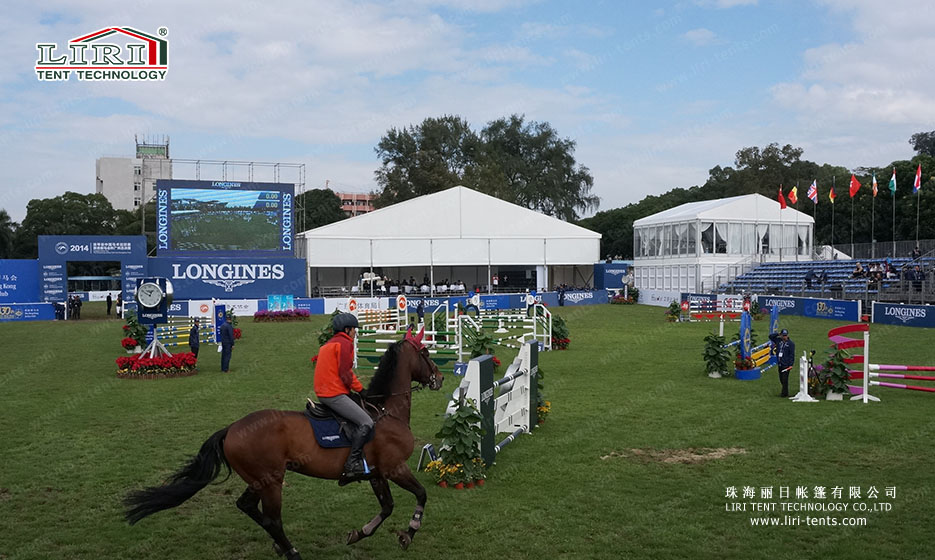

Liri provided a horse racing tent in the Tour 2014 Longines Hong Kong Jockey Club Cup Finals in Guangzhou.

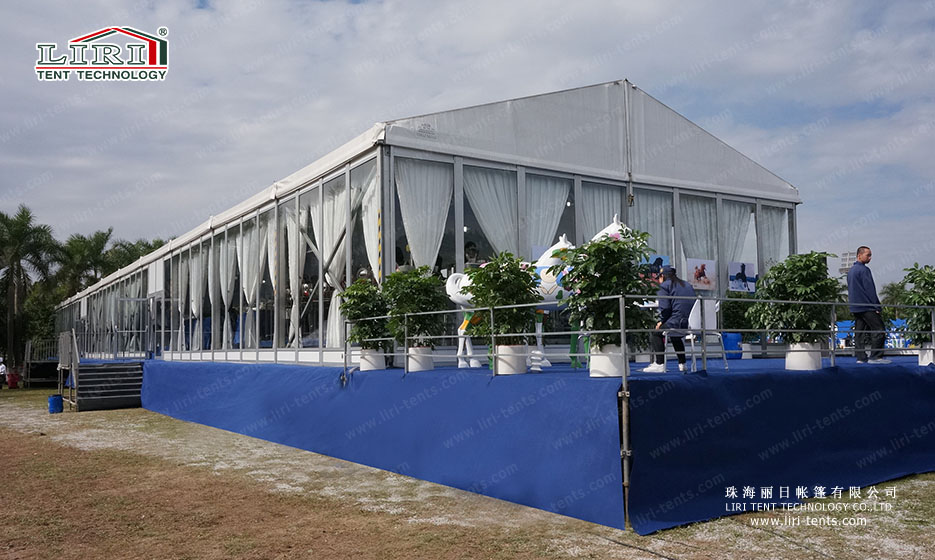

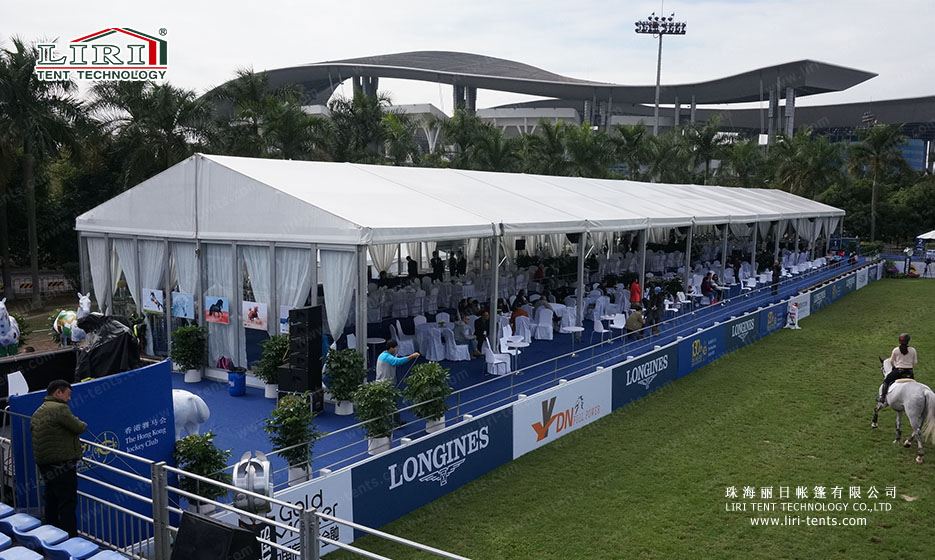

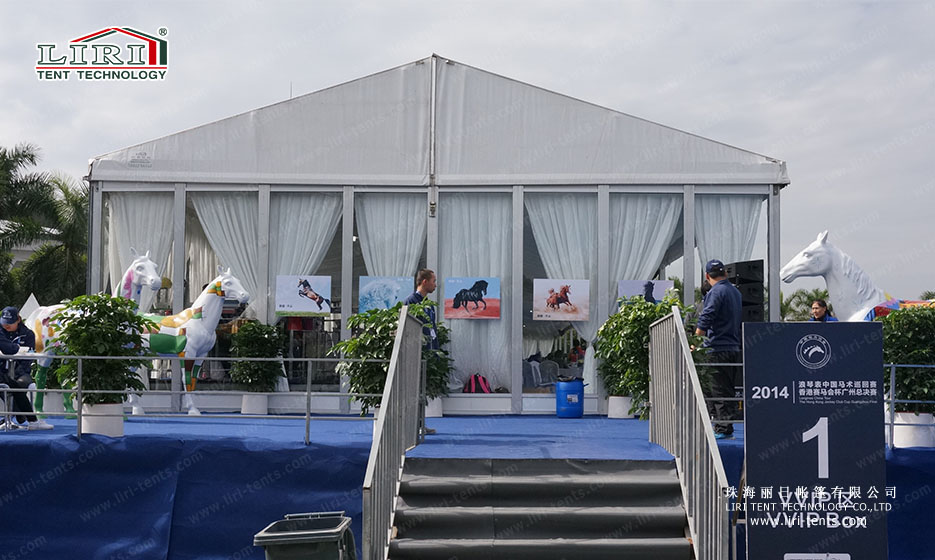

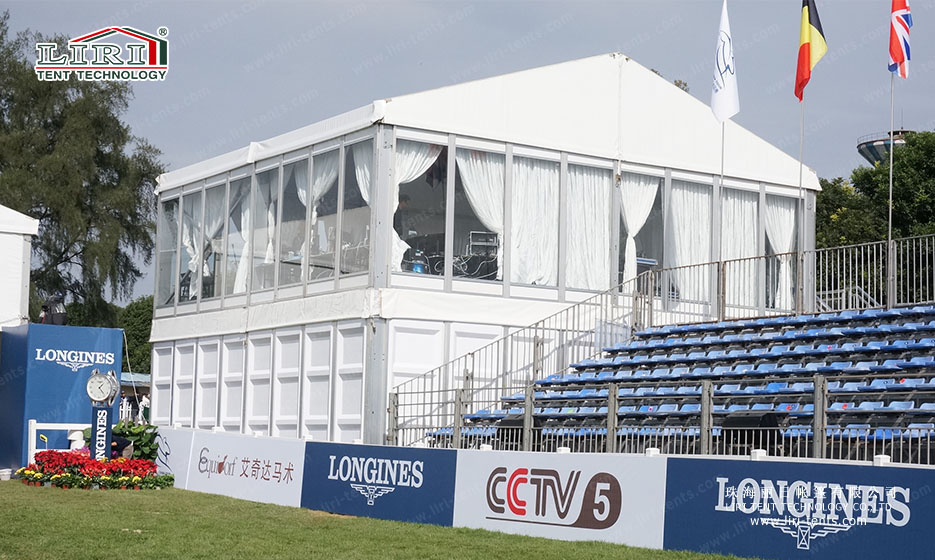

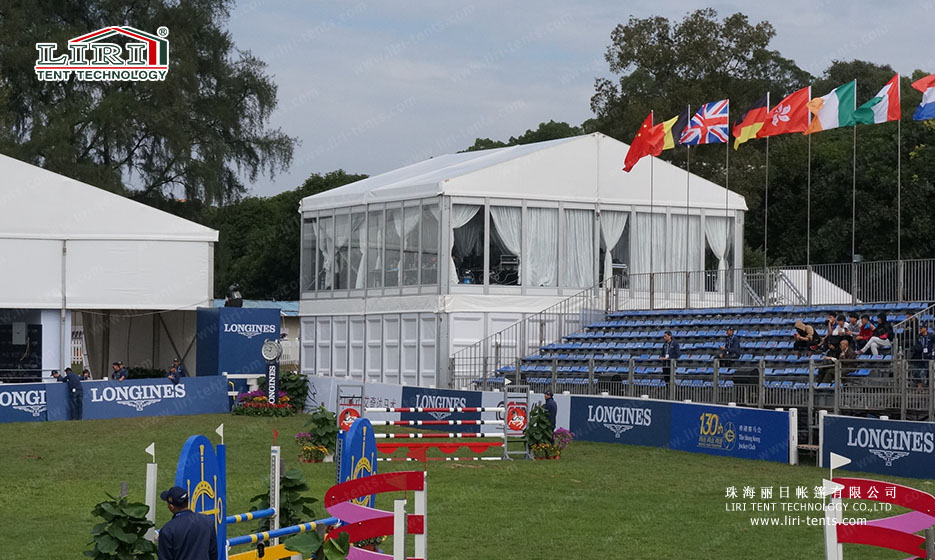

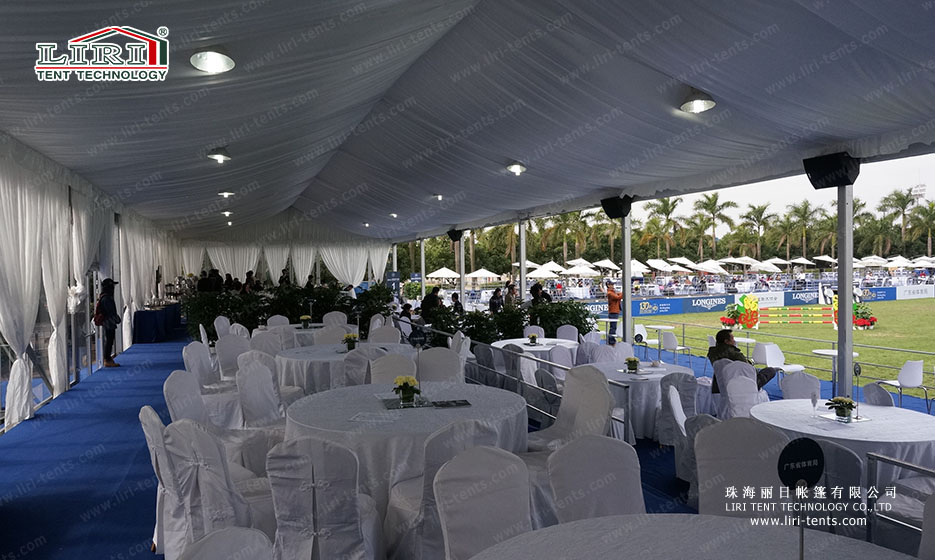

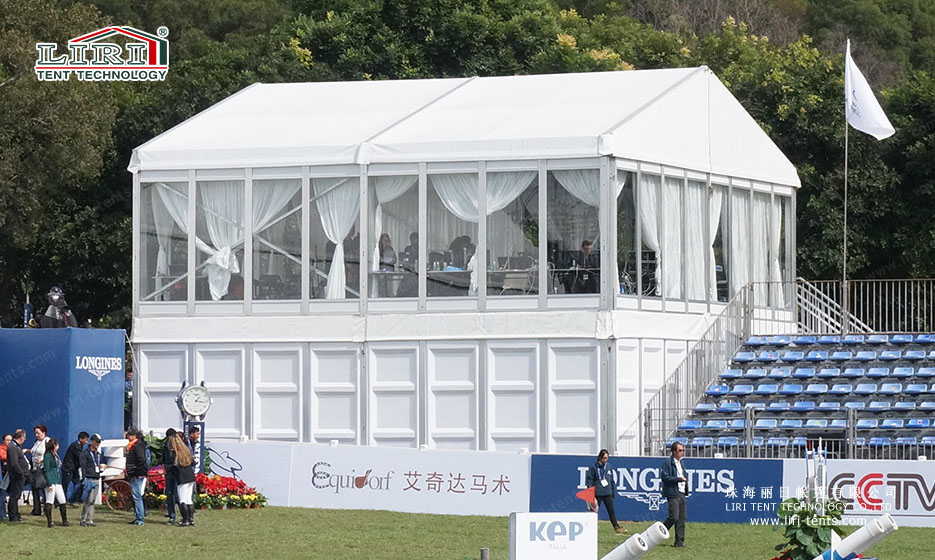

Liri provides more than 10,000 square meters of horse racing tent for this event. Including catering for VIP tents, multi-function area polygon tents cover an area of two hundred percent use of race viewing and referees seats two-story tents, and high-end five-star hotel for horses accommodation – Equestrian Tent

Longines Equestrian Tour China 2014 (referred to as “Tour”), Guangzhou, Hong Kong Jockey Club Cup finals will be held on March 5 to 7 days. The event integrates athletics events, entertainment, culture, equestrian sports industry in one, which has been highly concerned about and widely recognized by the industry, and the media.

More Applications of Liri Tents in Equestrian Items
Technische Daten der Zeltreihe für Sportveranstaltungen
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
10 m6.75m8.50m5 m300 × 120 × 5 mm (4-Kanal)
15 m6.75m9.34m5 m300 × 120 × 5 mm (4-Kanal)
20 m
6.75m10.17m5 m300 × 120 × 5 mm (4-Kanal)
25 m6.75m11 m5 m300 × 120 × 5 mm (4-Kanal)
30 m6.75m11.75m5 m300 × 120 × 5 mm (4-Kanal)
40 m6.75m13,5 m5 m300 × 120 × 5 mm (4-Kanal)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Bezugsstoff: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; flammhemmend gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
