Ausstellungszelte für die Airshow China 2021

2021 Zhuhai Airshow

Über das Projekt

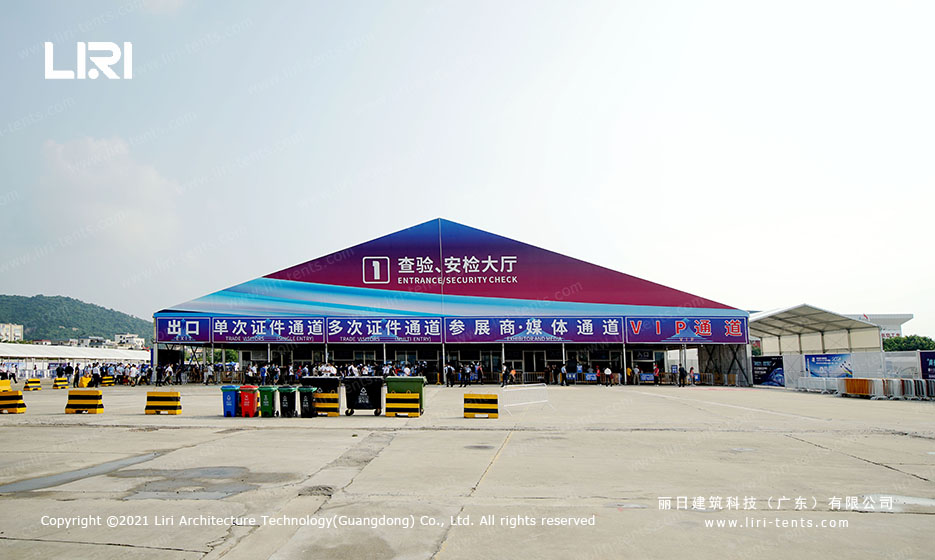

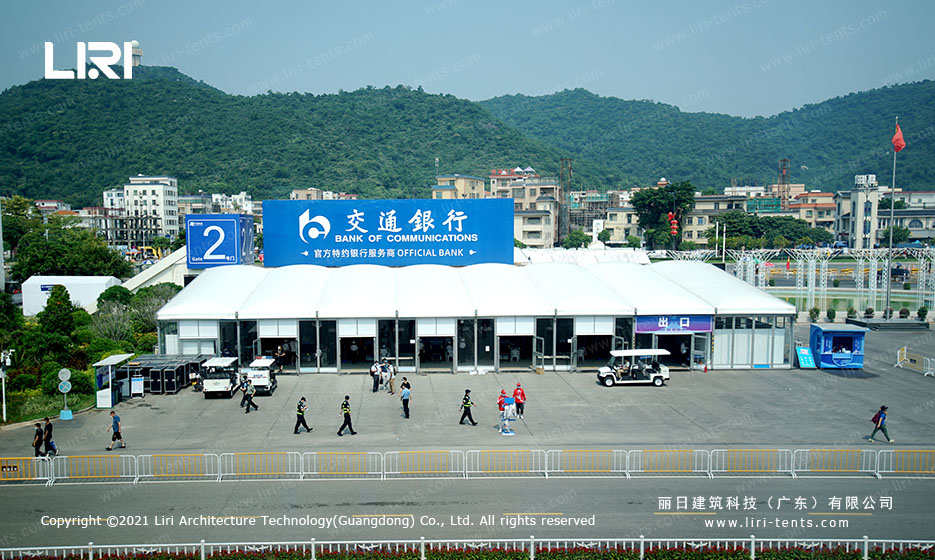

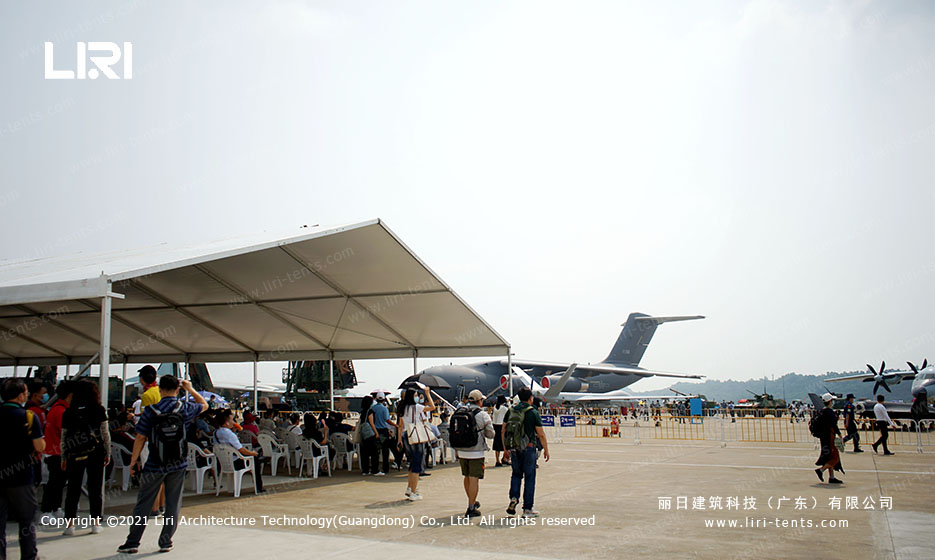

The 13th China International Aviation & Aerospace Exhibition 2021 (Zhuhai Airshow ) was held from September 28th to October 3rd, which is the largest airshow in China. LIRI Architecture, as for the local enterprise in Zhuhai, has been cooperated with China International Aviation & Aerospace Exhibition for 20 years and made cooperation again this year. LIRI provided Zhuhai Airshow with numerous temporary exhibition halls, these halls are bright and spacious inside with multifunctional areas.

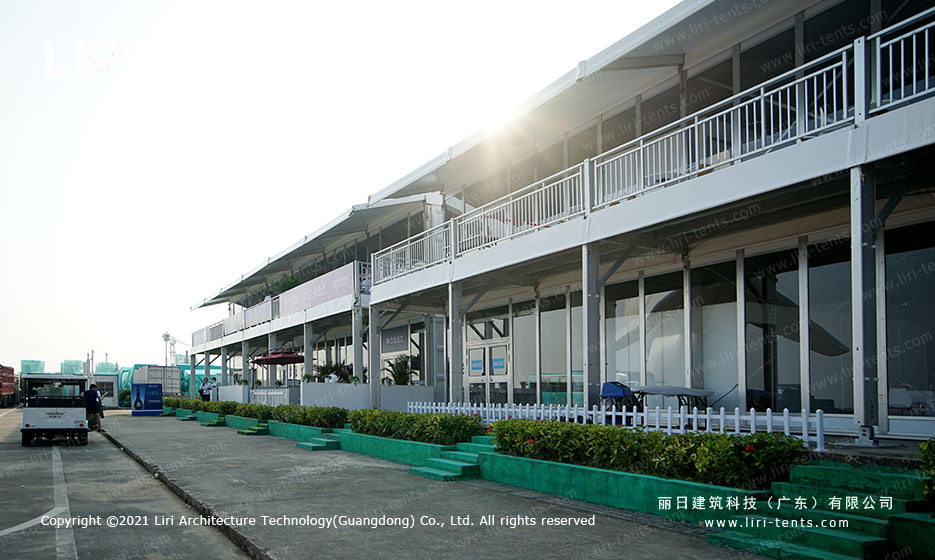

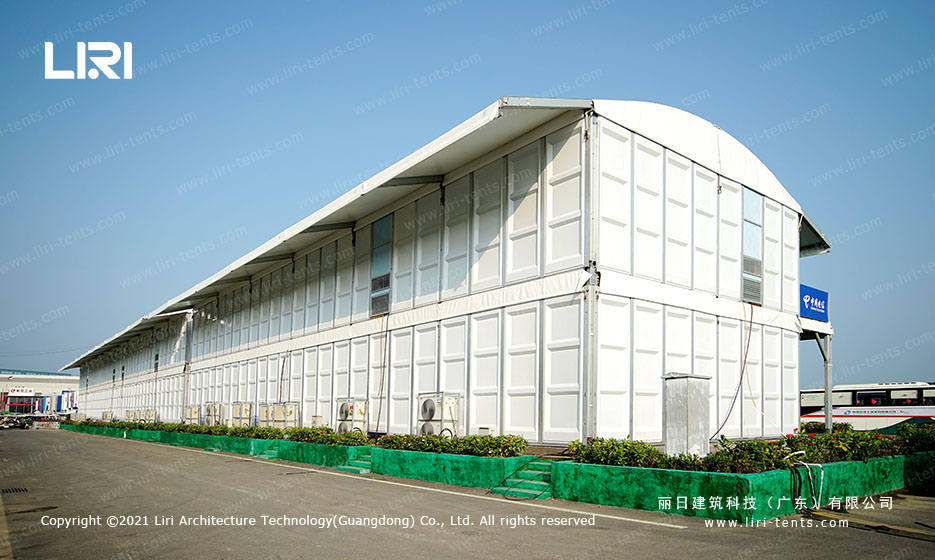

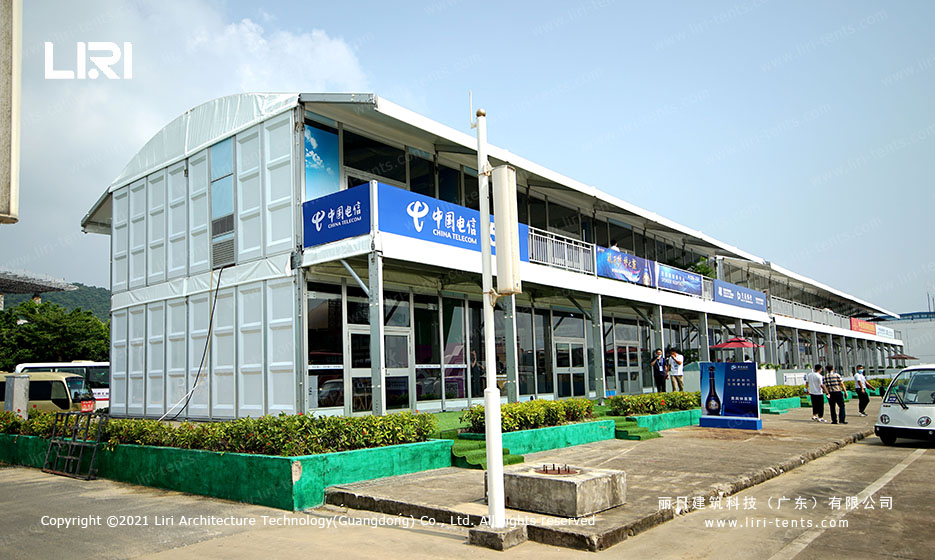

Arcum double decker tent, one of the temporary tents be used in Zhuhai airshow, whose design is double decker tent structure, people can enjoy the view of the whole site by standing on the balcony. Besides, as a VIP lounge, people can enjoy both taking a rest and enjoying the scenery in the meantime. These temporary exhibitions from LIRI Architecture covered a total area of 35,000 square meters. In this airshow, LIRI provided various solutions that almost match each scene promptly.

The Zhuhai Airshow, in addition to expanding the scale, let people deeply feel the strength of our motherland and the future of science and technology. Spy drone, Unmanned ship, Tianwen 1 Mars Probe, Change 5 Lunar Probe, BeiDou-3 Navigation Satellite System, showed in this exhibition, were all amazed us. All of them in this show are integrated into the four-word, “Chinese Power”.

Exhibition Tent Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
10 m8 m8.54m5 m300 × 120 × 5 mm (4-Kanal)
15 m8 m8.89m5 m300 × 120 × 5 mm (4-Kanal)
20 m8 m9.2m5 m300 × 120 × 5 mm (4-Kanal)
25 m8 m9,5 m5 m300 × 120 × 5 mm (4-Kanal)
30 m8 m9.8m5 m300 × 120 × 5 mm (4-Kanal)
40 m8 m10 m5 m300 × 120 × 5 mm (4-Kanal)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Bezugsstoff: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; flammhemmend gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
