Hersteller von Hangar-Zeltkonstruktionen für Flugzeuge

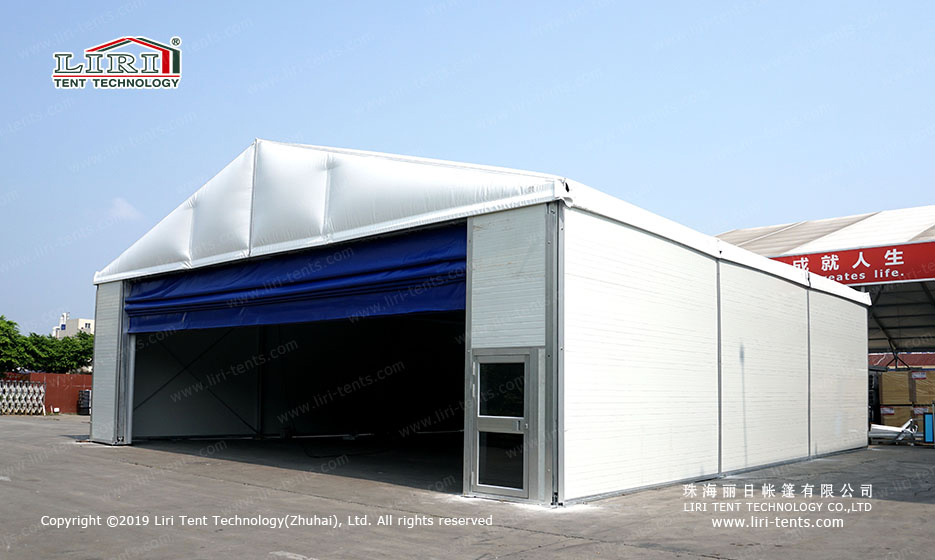

Aircraft Hangar Tent 1
Hangar Tent Structure 1

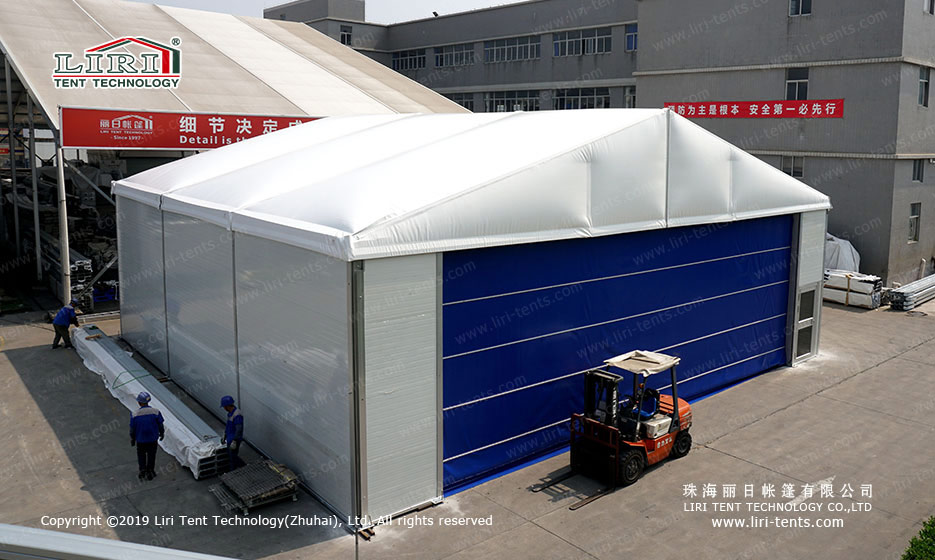

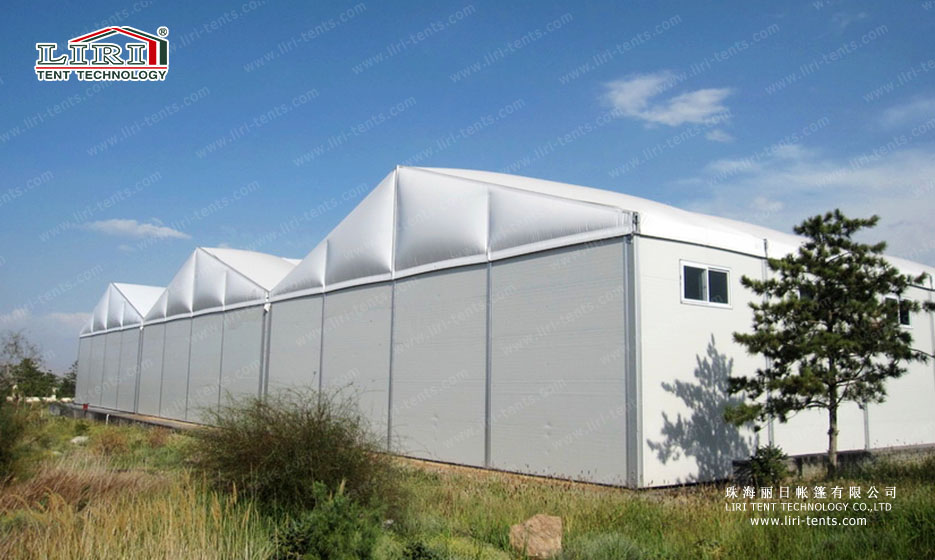

Hangar Tent Structure

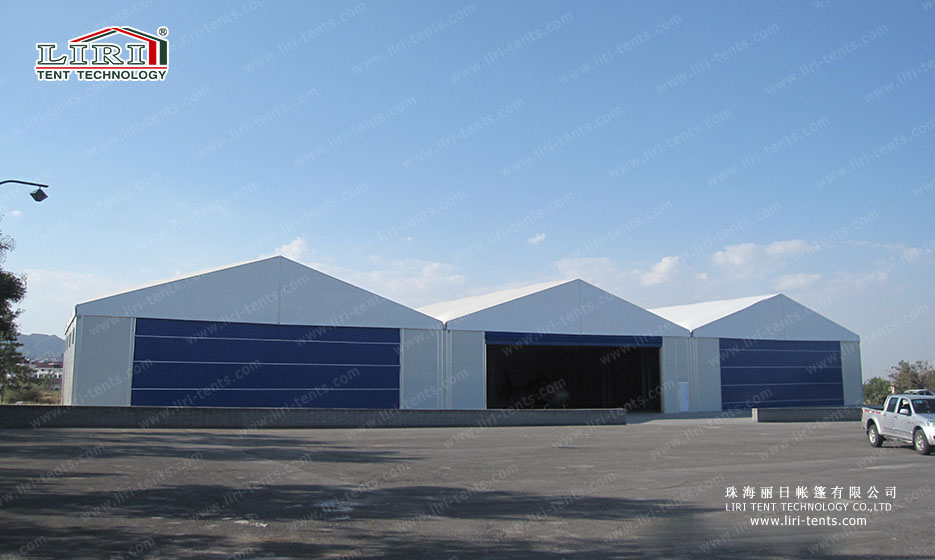

mobile tent with aluminum

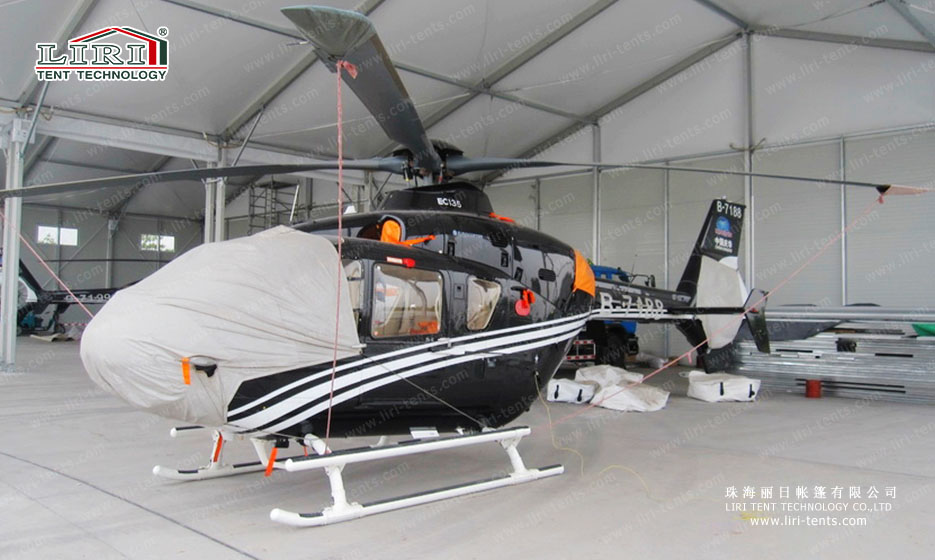

mobile tent

Military Tent With Doors For Aircraft Hangar

Über das Projekt

Aircraft hangar tent is the best choice as your aircraft hanger.

The hangar tent is the latest tent series developed by Zhuhai Liri Tent Technology Co., applying to the Naval Aviation and Civil Aviation as temporary or permanent hangars for light aircrafts. You can also use it as a warehouse tent.

The aircraft hangar tent is durable and sturdy which able to resist up to 120KM/hour (0.7KN/m2 wind loading). Its small transport dimension, easy-assembling and disassembling characters make this tent to be the best choice for hangars of Naval Aviation and Civil Aviation and other enterprises.

Advantage:
1. high wind loading capacity
2. high snow loading capacity
3. high quality aluminum frame
4. sandwich walls
5. inflatable PVC fabric roof cover with heat insulation,preservation and thermostatic effect.

The PVC fabric of aircraft hangar tent is double sides thickened actylic suface,flame retardant to DIN4102.B1.M2 and CFM/NFPA701

Military Tent Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
10 m3,88 m5,53 m5 m204 × 120 × 4 mm (4-Kanal)
12 m3,88 m5,83 m5 m204 × 120 × 4 mm (4-Kanal)
15 m3,88 m6,3 m5 m204 × 120 × 4 mm (4-Kanal)
16 m4 m6,5 m5 m204 × 120 × 4 mm (4-Kanal)
18 m3,88 m6,9 m5 m204 × 120 × 4 mm (4-Kanal)
20 m3,88 m7,1 m5 m204 × 120 × 4 mm (4-Kanal)
20 m6 m9,22 m5 m204 × 120 × 4 mm (4-Kanal)
21 m3,88 m7,25 m5 m204 × 120 × 4 mm (4-Kanal)
25 m3,88 m7,88 m5 m204 × 120 × 4 mm (4-Kanal)
Merkmale

Rahmenstreben: hartgepresstes stranggepresstes Aluminium 6061/T6 (15HW).

Bezug: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; schwer entflammbar gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Säule im Innenraum, 100% verfügbarer Innenraum.
