Über das Projekt

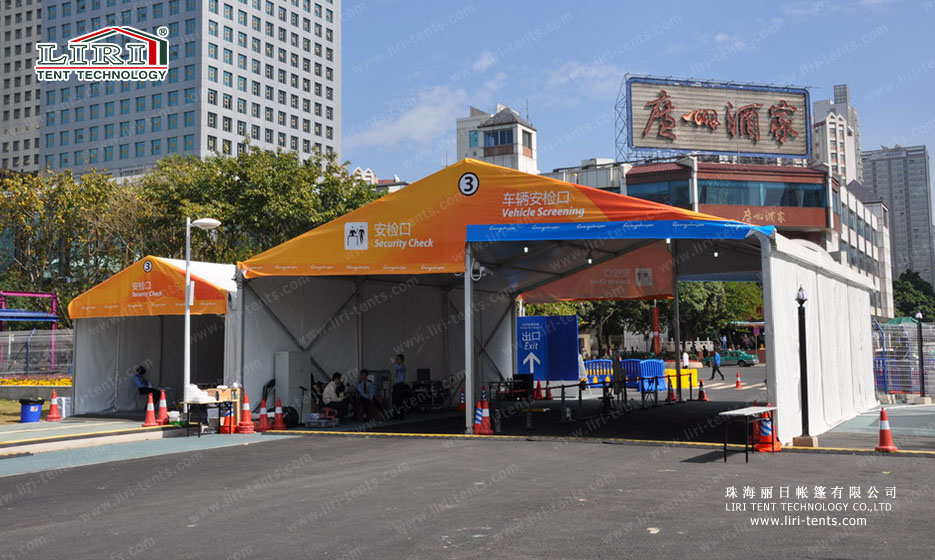

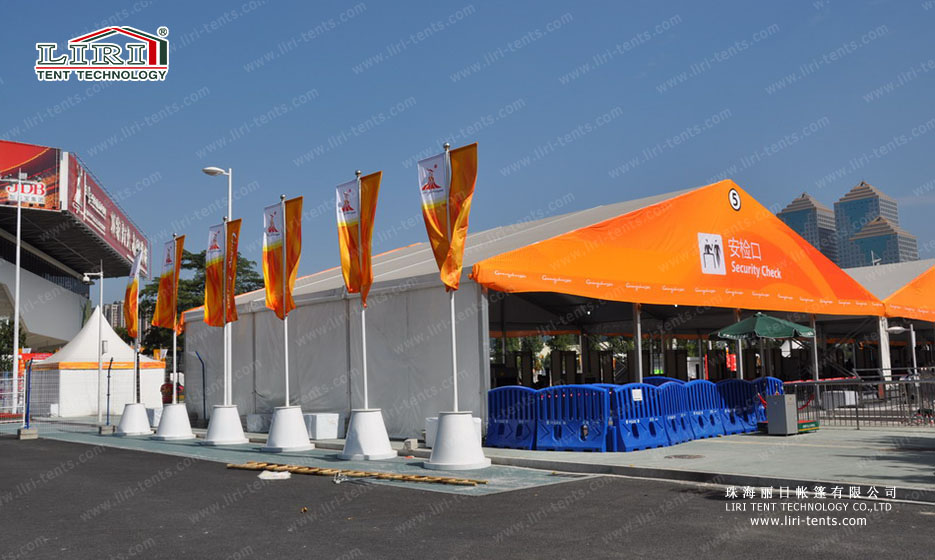

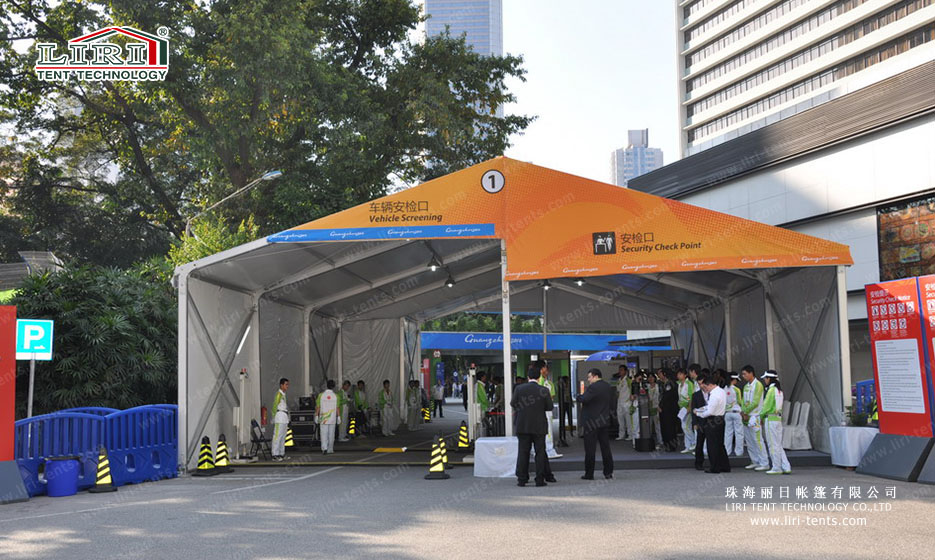

Liri tent divides security checkpoint tents into two main purposes, namely, personal security and vehicle security. There are two series of security checkpoint tents, which side heights are 2.6m and 3.3m, and its span width is available in different sizes depending on the requirements of the customers’ terrain. Security screening machines and other security equipment can be placed in the tent. The security checkpoint tents are widely used in various large-scale outdoor exhibitions, sporting events, and other outdoor activities.

Zhuhai Liri Tent Technology Co., Ltd, specialized in the manufacturing and leasing all kinds of tents, has successfully provided large quantities of security checkpoint tents for the 2010 Guangzhou Asian Games, the 2011 Shenzhen Universiade Games, 2013 China Open, and the 2015 Beijing world championships.

Checkpoint Tent Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
8 m3.3m4.53m5 m152x119x3.5mm (4 - channel)
10 m3.3m4.85m5 m152x119x3.5mm (4 - channel)
10 m4m5.55m5 m152x119x3.5mm (4 - channel)
12 m3.3m5.16m5 m152x119x3.5mm (4 - channel)
12.5m3.3m5.29m5 m152x119x3.5mm (4 - channel)
15 m3.3m5.62m5 m152x119x3.5mm (4 - channel)
15 m4m6.32m5 m152x119x3.5mm (4 - channel)
16m3.3m5.72m5 m152x119x3.5mm (4 - channel)
18m3.3m6.01m5 m152x119x3.5mm (4 - channel)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear-resistant, self-cleaning ability, etc

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
