Field Hospital Tent

Field Hospital Tent Introduce

Über das Projekt

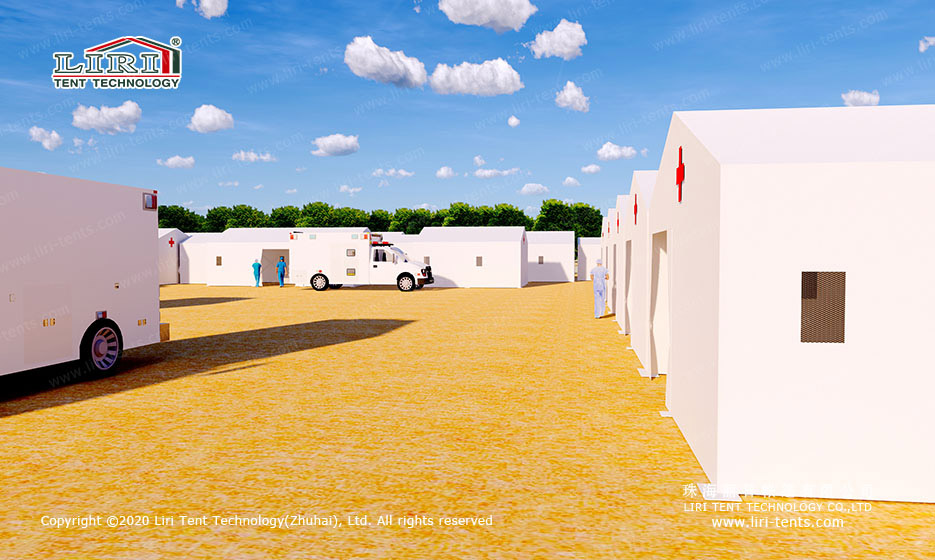

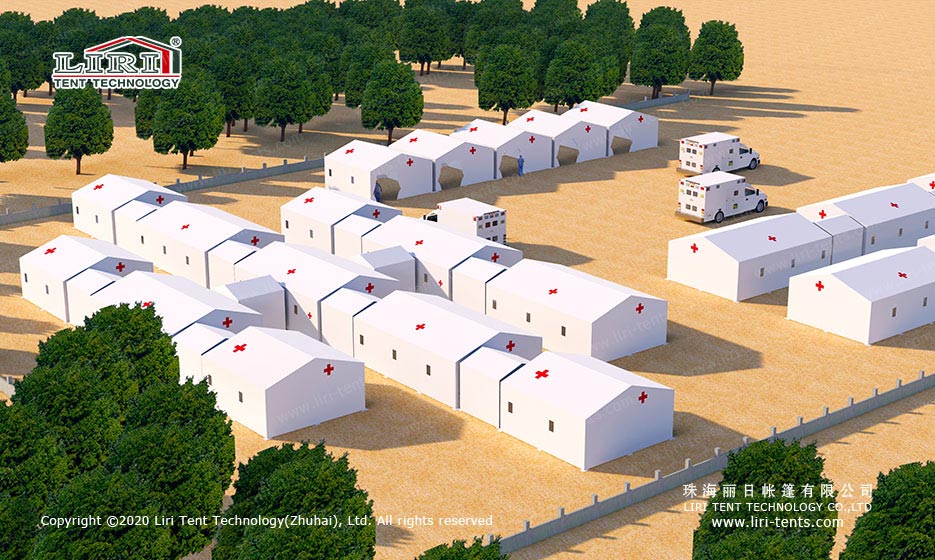

The spread of the epidemic has led to insufficient hospitals. Expansion hospitals and solving medical problems have become the primary issues. Liri Rescue Tent can produce prefabricated aluminum alloy pipes at the factory in advance and transport them to the site. They can quickly deploy the solutions of medical tents, field hospitals and square cabin hospitals. The hospitals can be built and put into use in 1-3 days at the earliest, improving the speed of medical rescue.

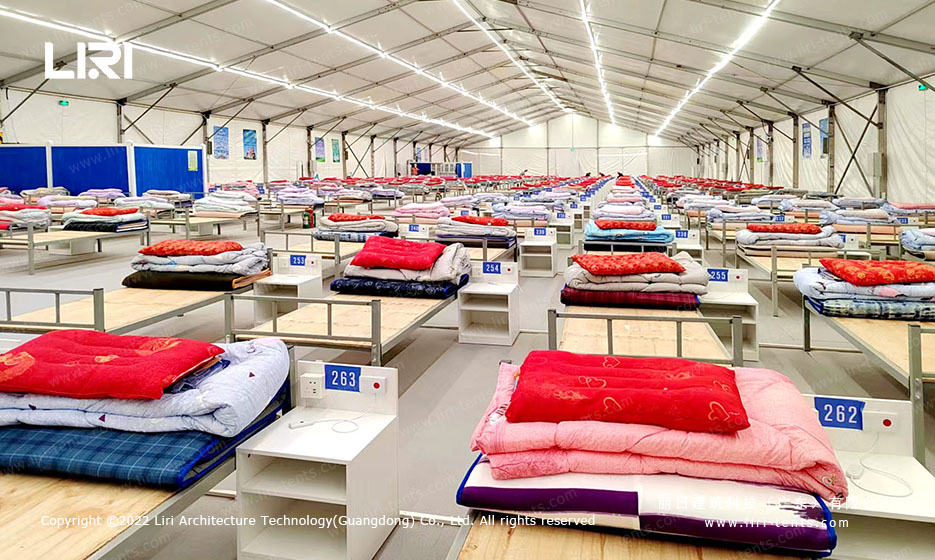

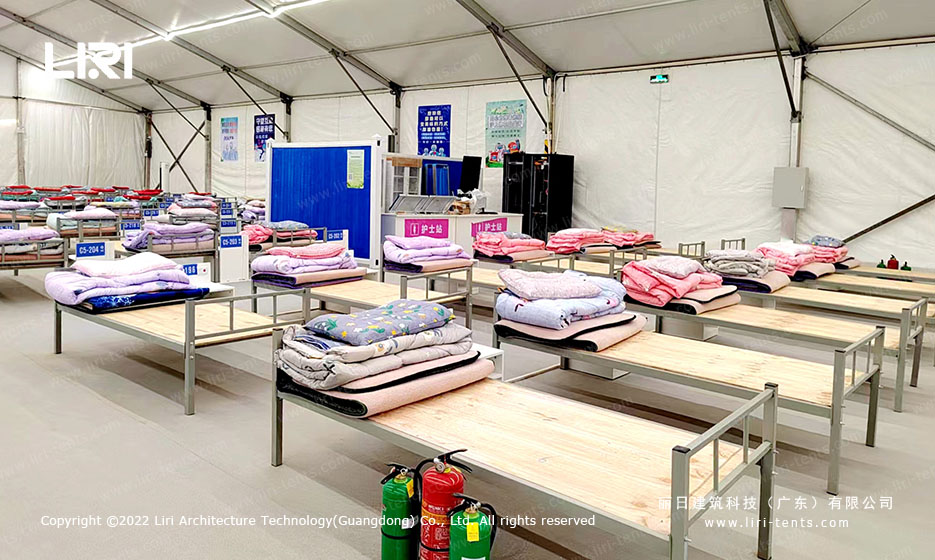

The quickly assembled rescue Field Hospital Tent can be freely divided inside to become a separate room. And it can also provide a collective isolation resting area to ensure the safety and rest of medical staff.

Medical Tents Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
3m2.6m3.16m3m100x48x3.0mm (4 - channel)
4m2.6m3.35m3m100x48x3.0mm (4 - channel)
5m2.6m3.52m3m100x48x3.0mm (4 - channel)
6m2.6m3.71m3m100x48x3.0mm (4 - channel)
8m2.6m4.05m3m100x48x3.0mm (4 - channel)
9m2.6m4.24m3m100x48x3.0mm (4 - channel)
10m2.6m4.4m3m100x48x3.0mm (4 - channel)
12m
2.6m4.76m3m100x48x3.0mm (4 - channel)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Fabric cover: high quality double PVC-coated polyester textile; 100% waterproof; flame retardant to DIN4102 B1, M2, CFM; UV resistant, tear resistant, self-cleaning ability, etc

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
