Über das Projekt

Recently, the opening ceremony of the 2017 Guangdong International Tourism and Culture Festival was held at a large drama theater. And Liri Tent was the temporary structural show tents supplier of this fair.

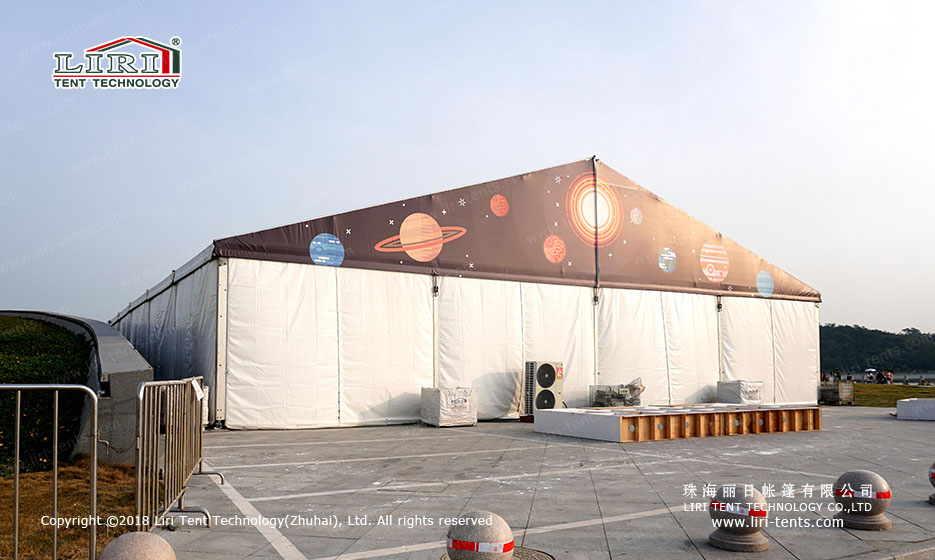

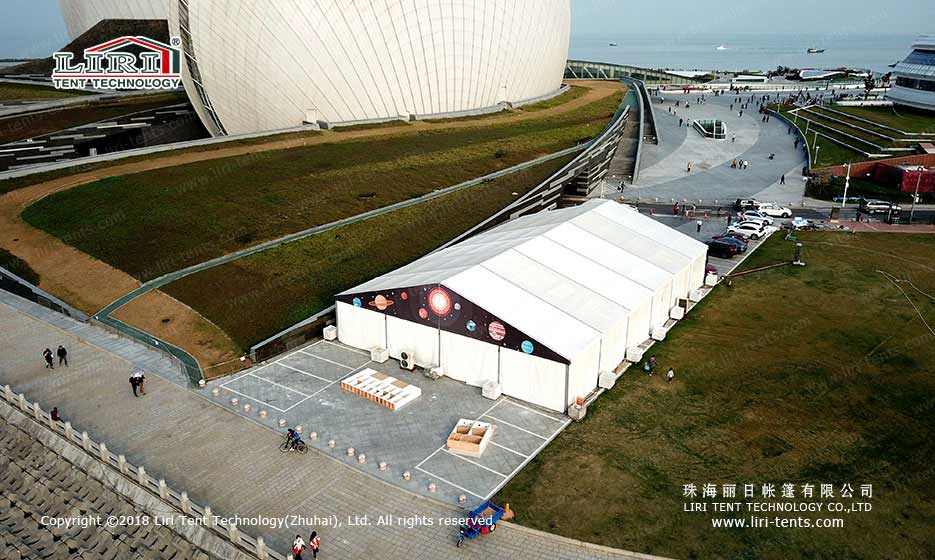

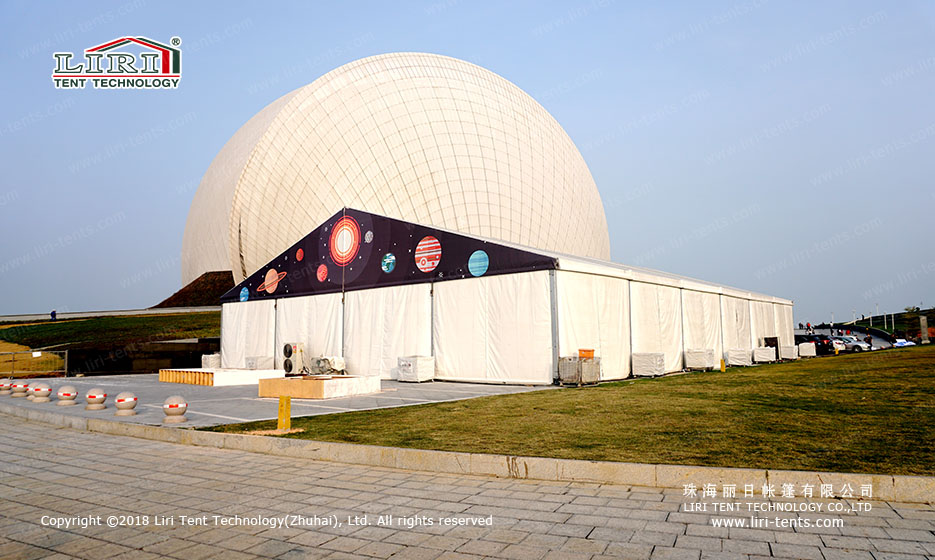

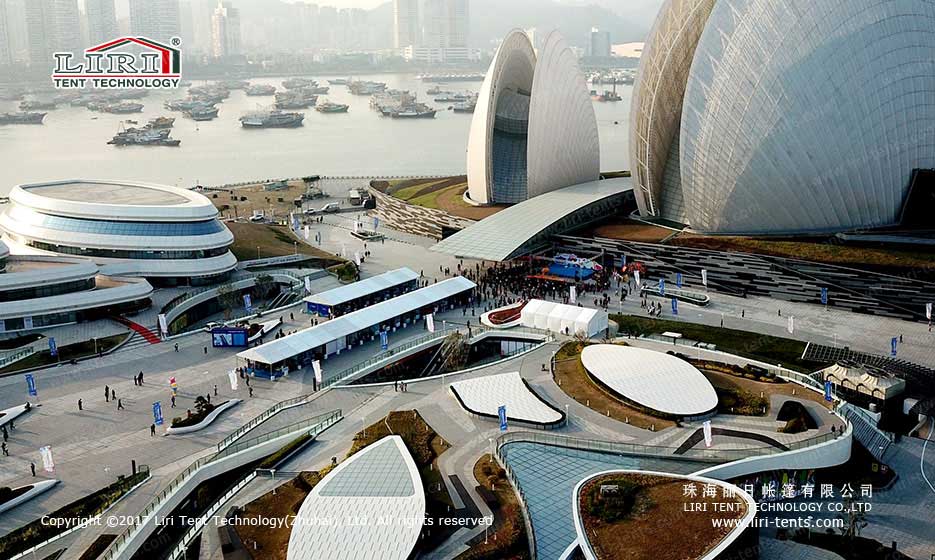

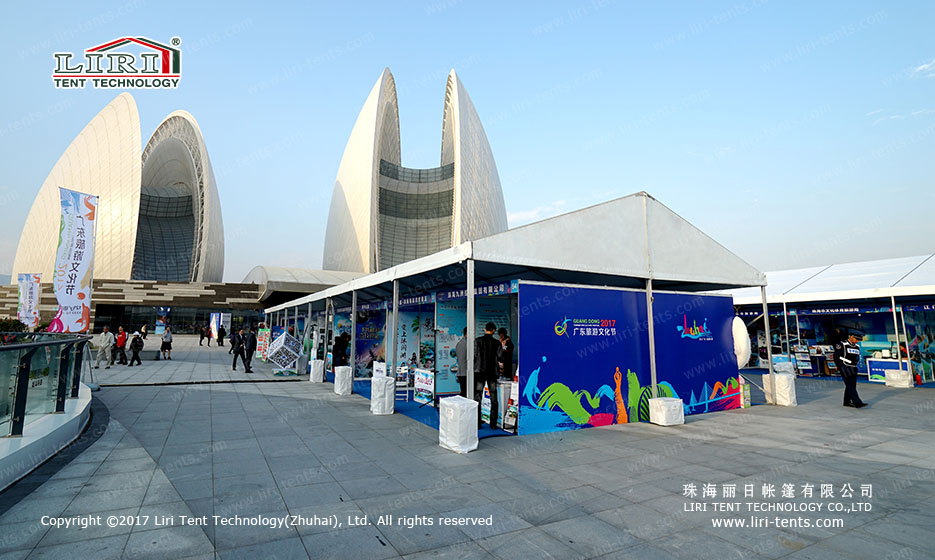

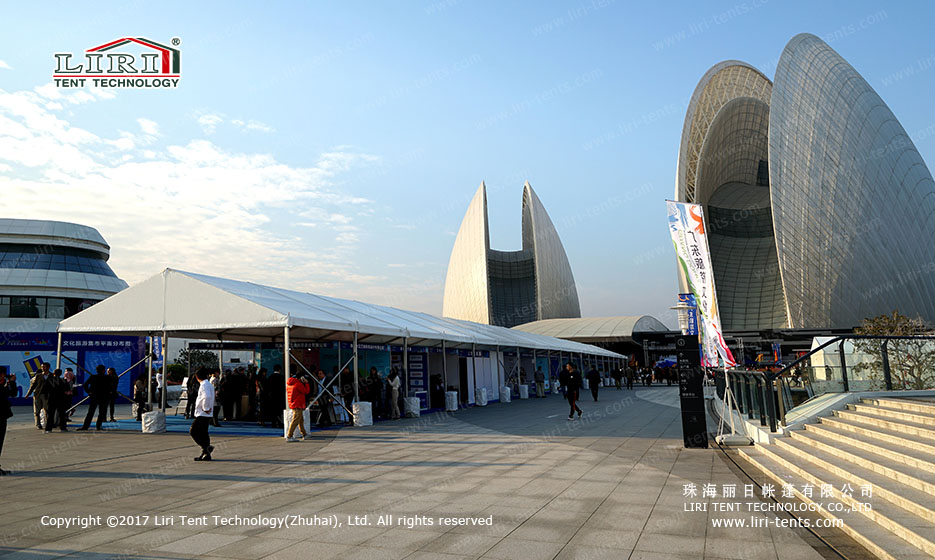

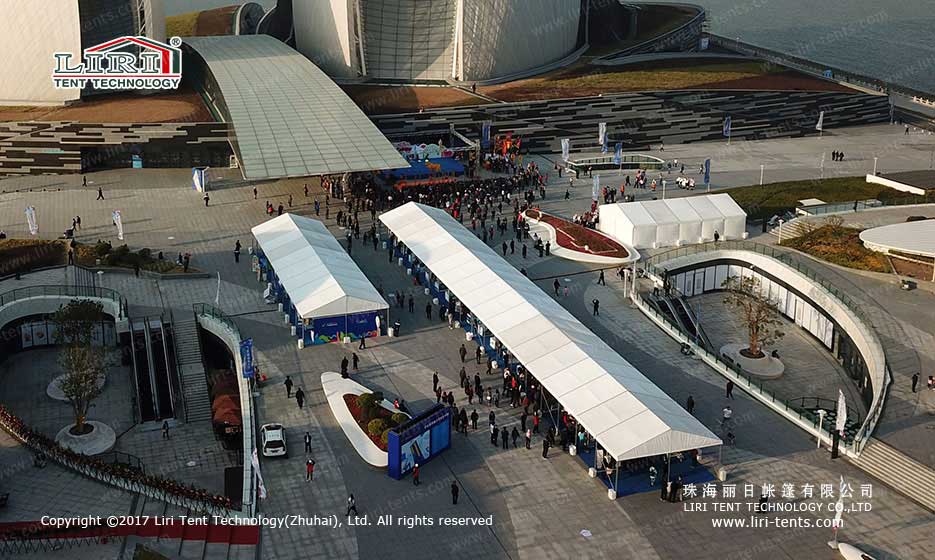

Liri Tent built up a series of show tents as temporary booths in the theater open-air square. The online and offline exhibition exhibitors use them for advertising, to provide tourists with concessional tourism products.

For a successful cultural event, it may be necessary to quickly expand the venue in the short term to meet the needs of the exhibition. In addition to ensuring the smooth running of the exhibition, it should consider whether the tent matches the original architectural forms or not, and synthetically plan its form and function. Therefore, the trade show canopy tent for this tourism festival to create a unique landscape.

As more and more large-scale exhibitions being held now, carrying out the exhibition around the landmark buildings is people’s first choice. It raises the level of the activity, and achieve a better propaganda effect. Therefore the trade show canopy tent becomes more and more popular nowadays, not only it’s easy to install and dismantle, but also it’s reusable, show tent is the essential choice for all kinds of temporary venues.

Exhibition Tent Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
8 m3.3m4.53m5 m152x119x3.5mm (4 - channel)
10 m3.3m4.85m5 m152x119x3.5mm (4 - channel)
10 m4 m5.55m5 m152x119x3.5mm (4 - channel)
12 m3.3m5.16m5 m152x119x3.5mm (4 - channel)
12,5 m3.3m5.29m5 m152x119x3.5mm (4 - channel)
15 m3.3m5.62m5 m152x119x3.5mm (4 - channel)
15 m4 m6.32m5 m152x119x3.5mm (4 - channel)
16 m3.3m5.72m5 m152x119x3.5mm (4 - channel)
18 m3.3m6.01m5 m152x119x3.5mm (4 - channel)
Merkmale

Rahmenstreben: hartgepresstes stranggepresstes Aluminium 6061/T6 (15HW).

Bezug: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; schwer entflammbar gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Säule im Innenraum, 100% verfügbarer Innenraum.
