Arcum-Zelt für die Automobilausstellung

Car Show Le Mans Rally Sports Event Tent Supplier

Über das Projekt

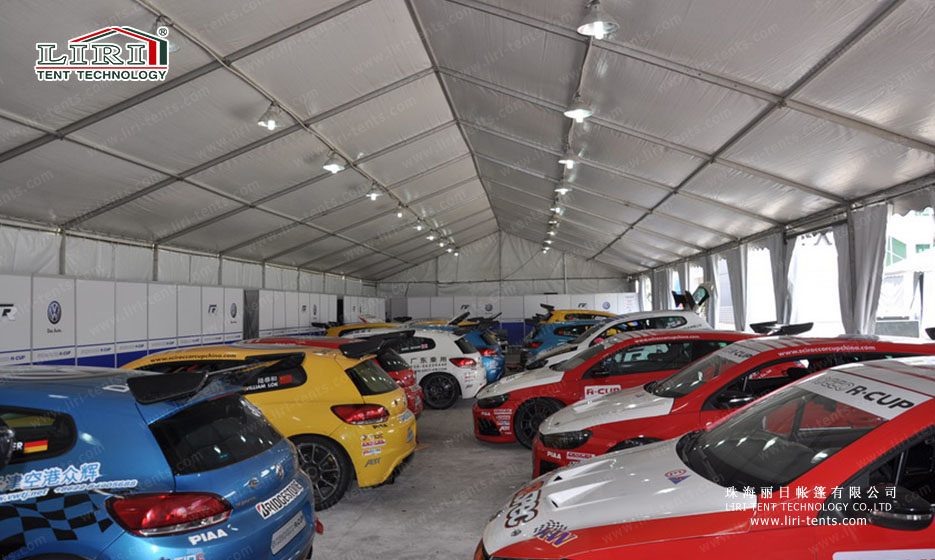

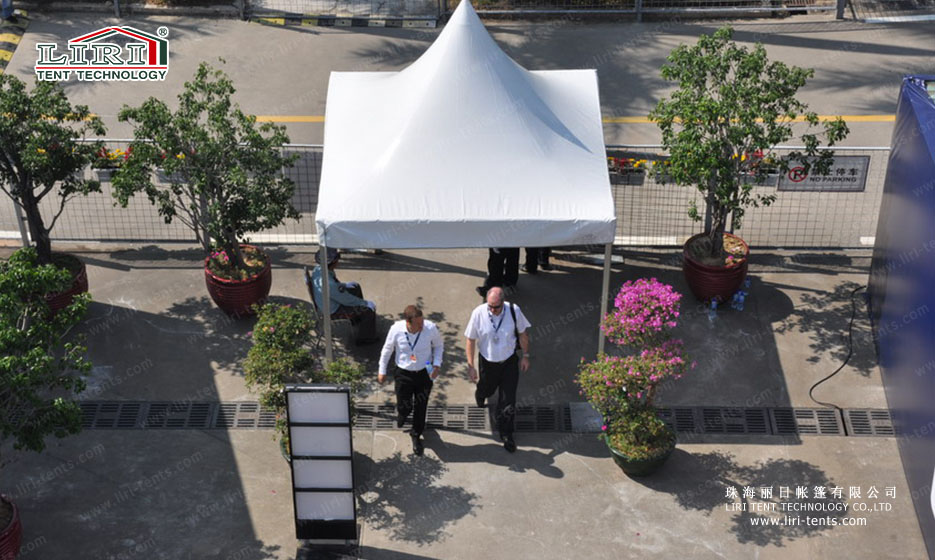

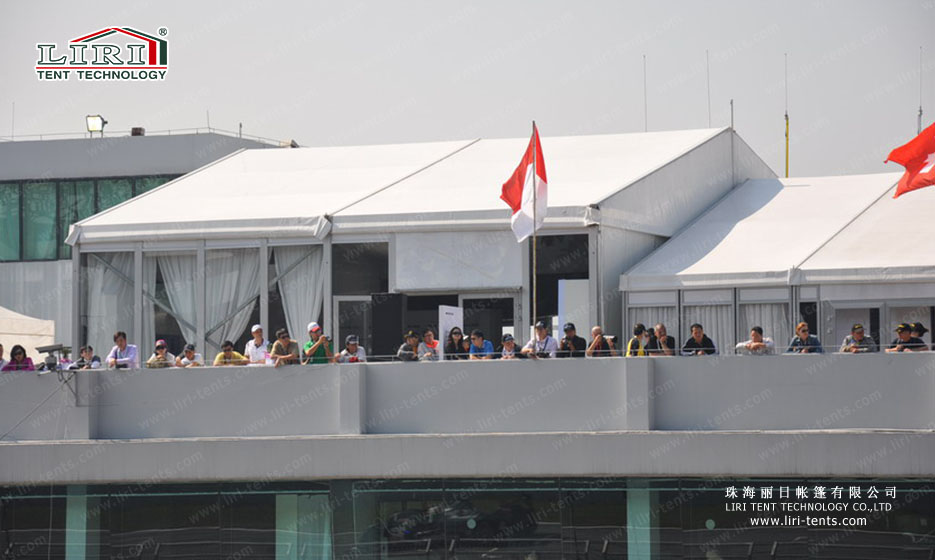

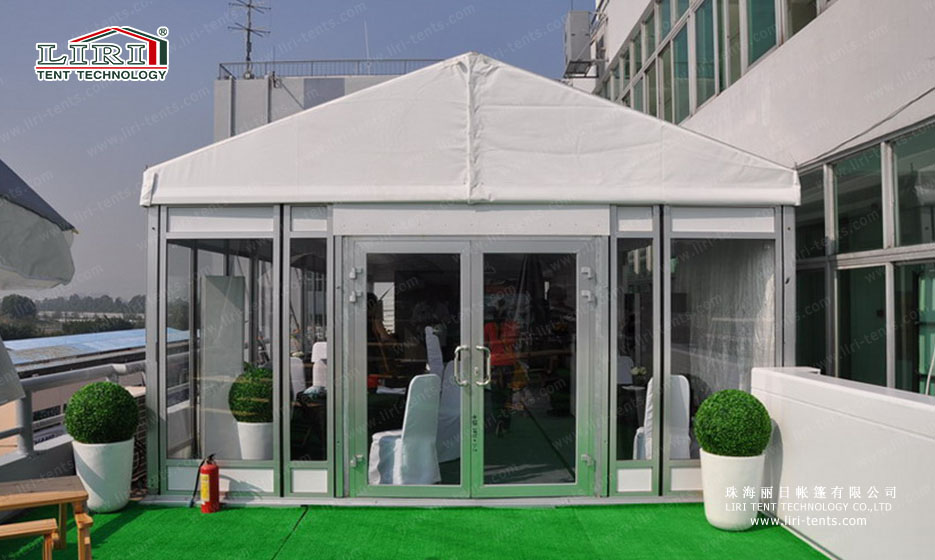

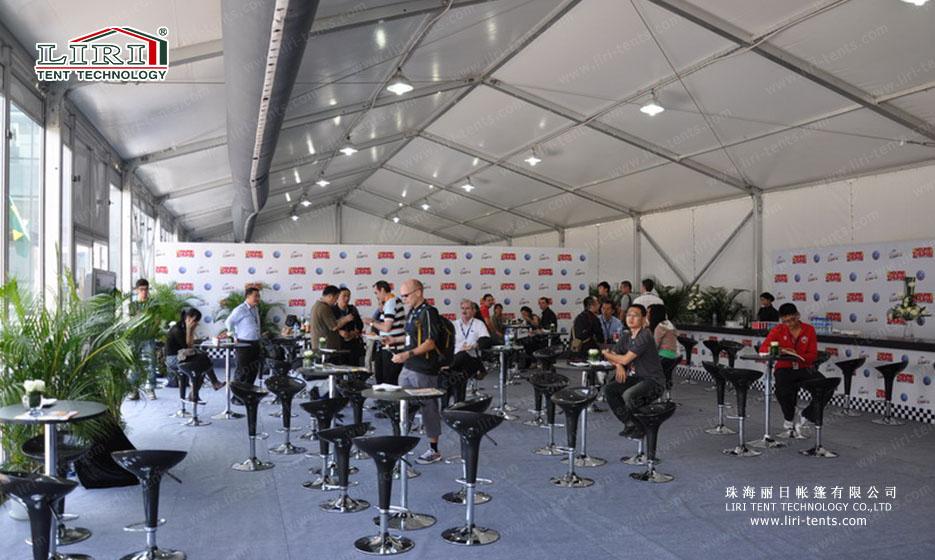

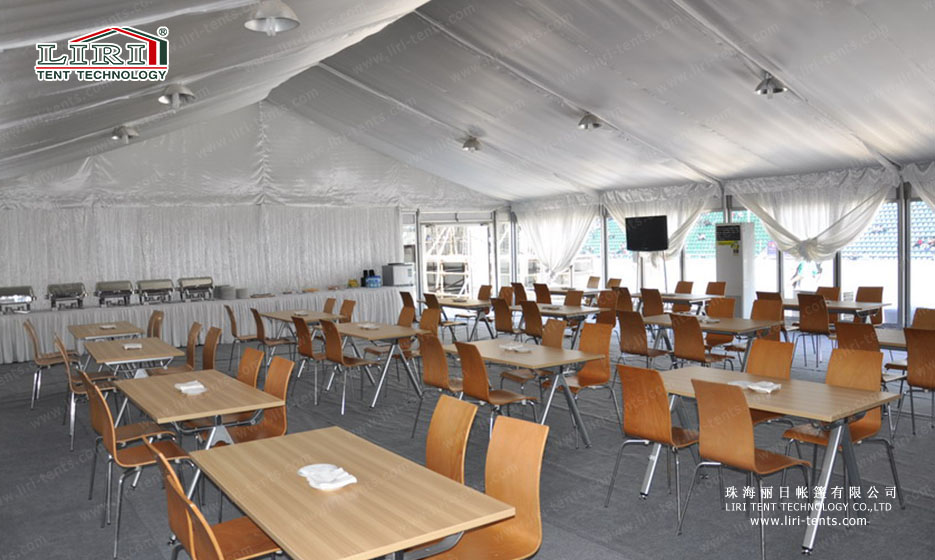

Liri Tent as the appointed Arcum tent supplier for most sports events in China surely we won’t miss this great event. We provide tents for the ticket area, rest area, car showroom, etc, protecting the athletes and audiences from wind, rain and UV.

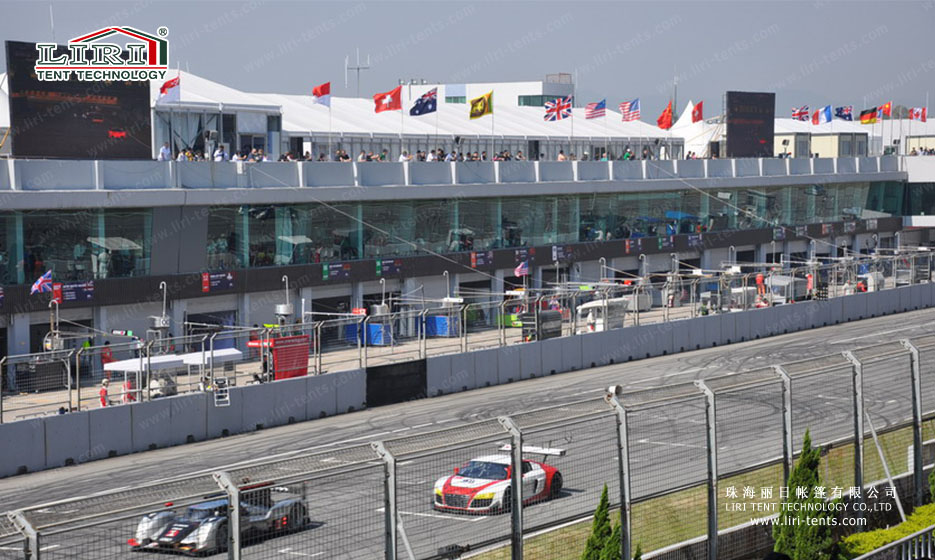

After years’ negotiation, one of the world Top 3 big car racing, Le Mans Race will be held in Zhuhai. Intercontinental Le Mans Rally 2010 was held in Zhuhai International Circuit On October 7th, 2010. Fans would be able to witness a tense and exciting rally in Zhuhai.

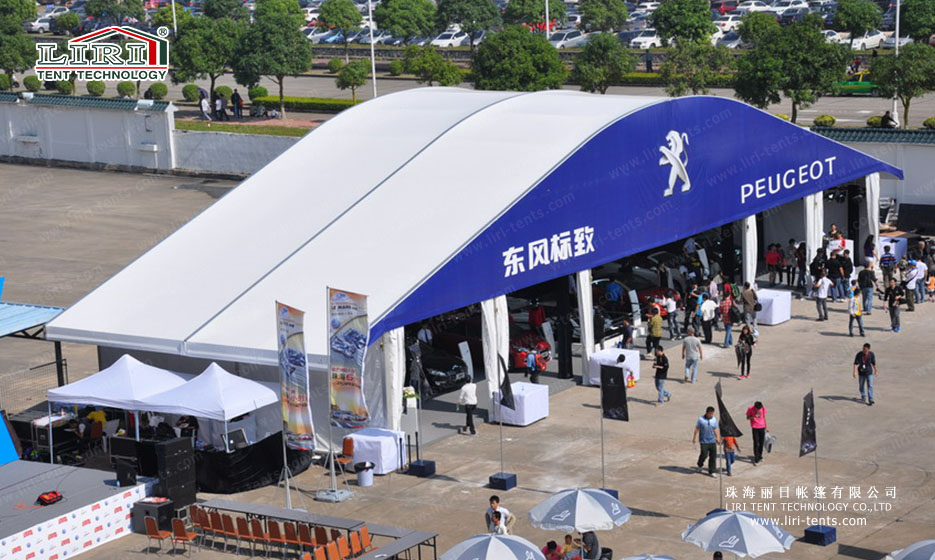

The Peugeot car showroom is built by Liri Tent. In 2011, Liri Tent cooperated with Peugeot again and provided Peugeot with unique design arcum Autoshow-Zelt on the basis of the previous experiences. The Arcum tent for Peugeot temporary showroom looks beautiful and attractive. The car show tent becomes the central landmark and highlight of the Intercontinental Le Mans 6 Hours in Zhuhai and fully displays the distinguished architecture design.

Technische Daten der Zeltreihe für Sportveranstaltungen
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
15 m
3,92 m5,4 m5 m300 × 120 × 5 mm (4-Kanal)
20 m3,92 m6,3 m5 m300 × 120 × 5 mm (4-Kanal)
25 m3,92 m7,15 m
5 m300 × 120 × 5 mm (4-Kanal)
30 m3,92 m7,87 m5 m300 × 120 × 5 mm (4-Kanal)
40 m3,92 m9,6 m5 m300 × 120 × 5 mm (4-Kanal)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Bezugsstoff: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; flammhemmend gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
