Custom Beer Festival Tents

Custom Event Tents for Beer Festival

Über das Projekt

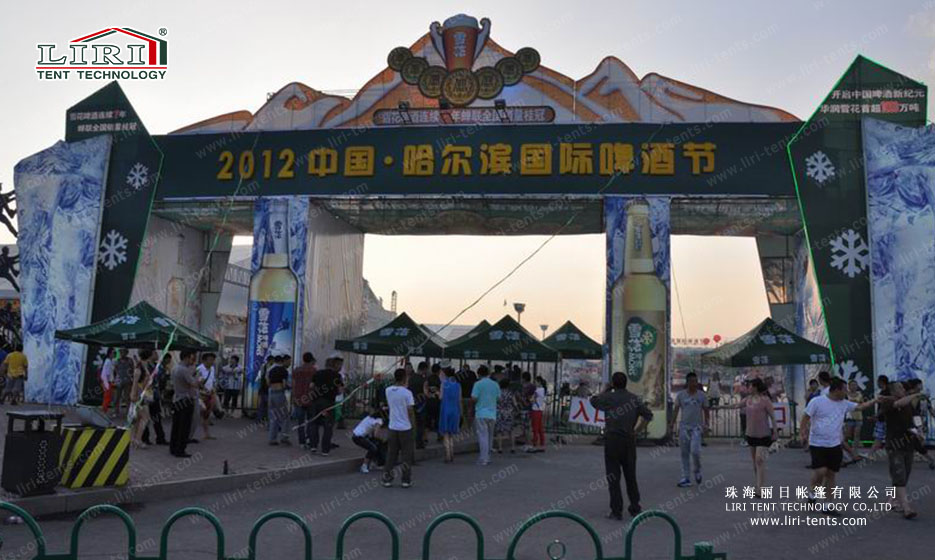

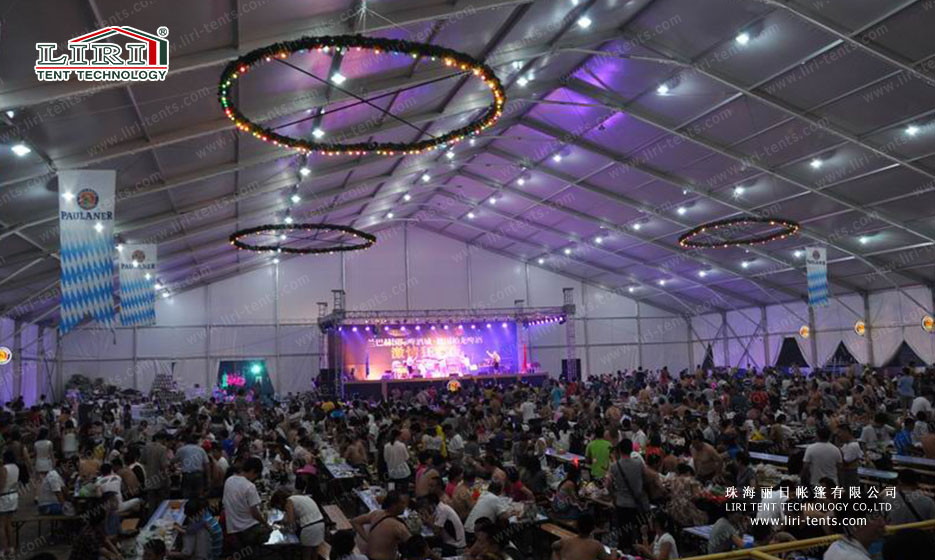

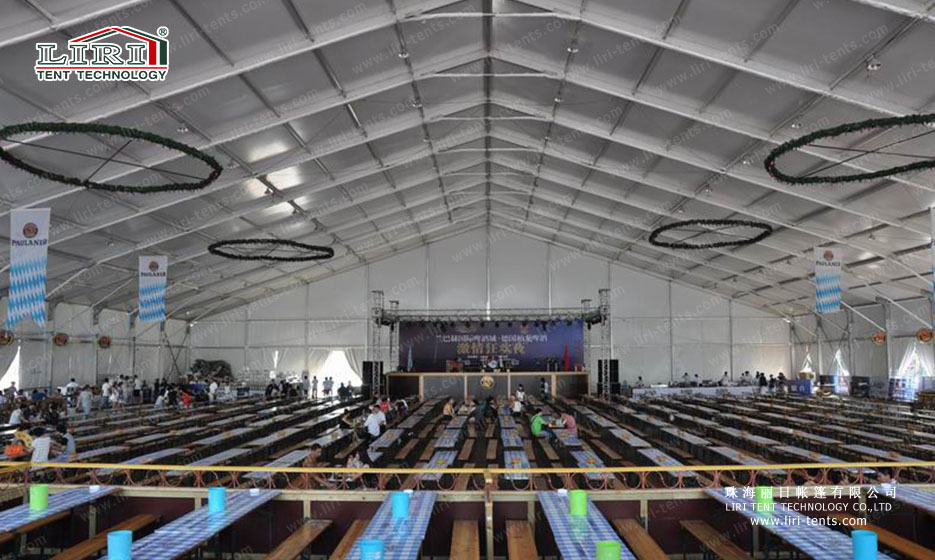

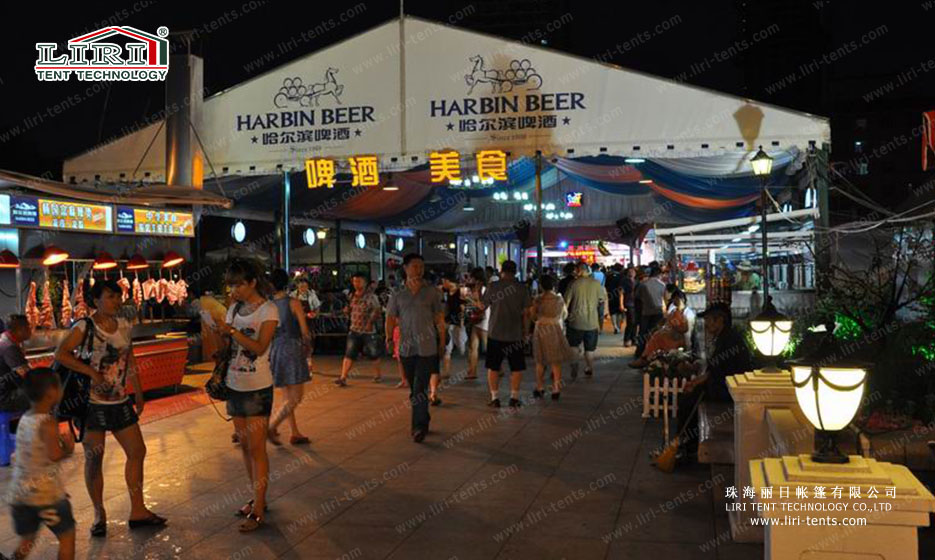

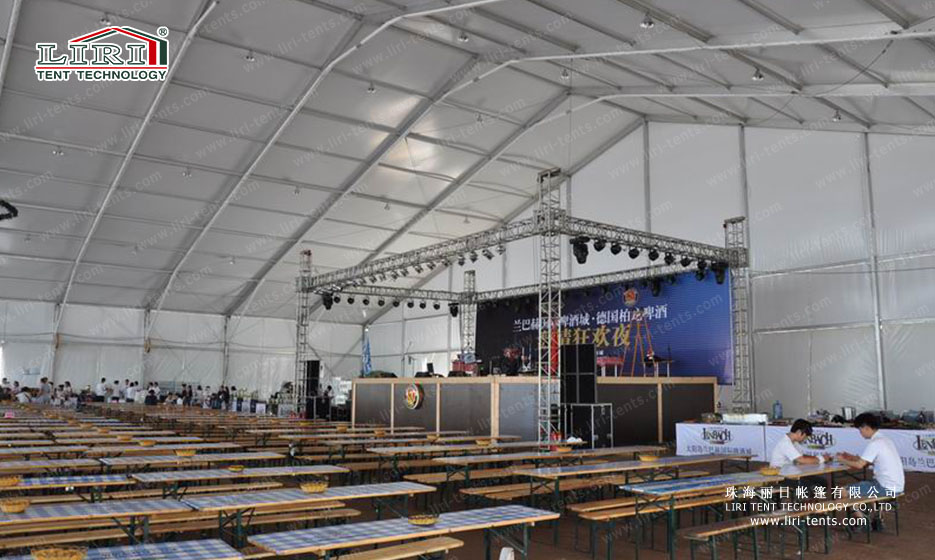

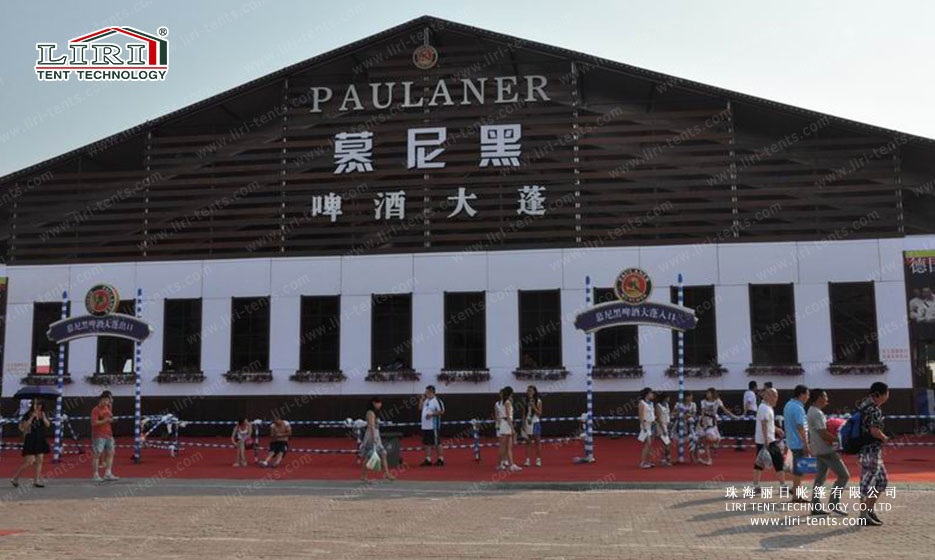

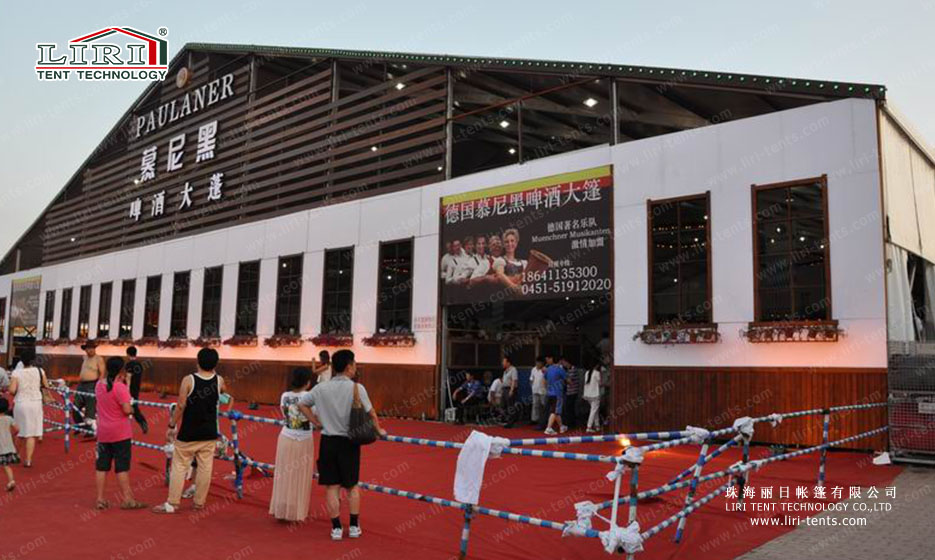

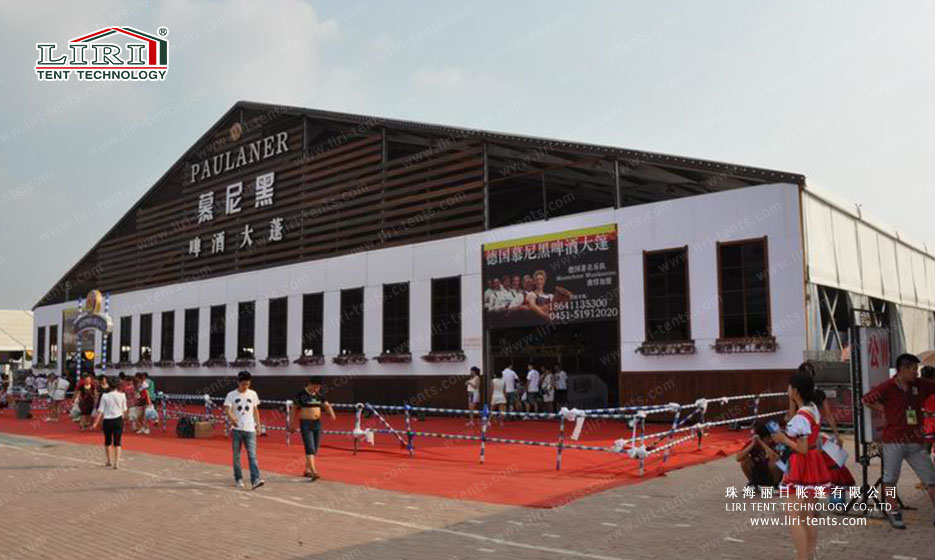

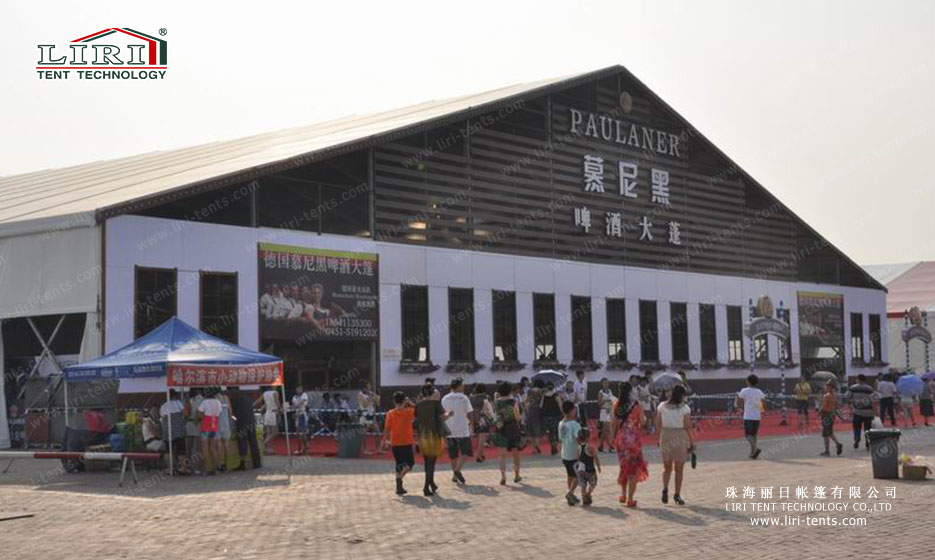

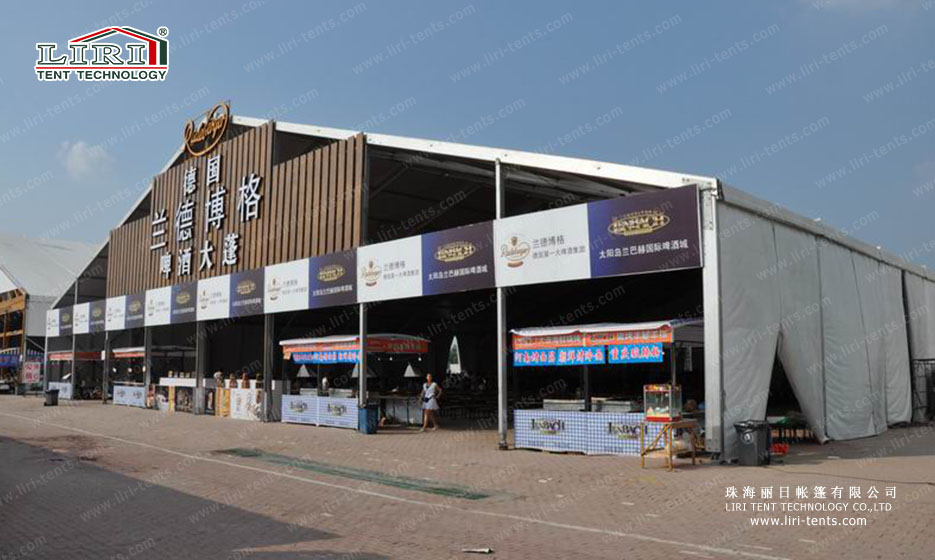

Harbin beer festival covers an area of 400,000 square meters, is the biggest of all previous. Totally there are 12 custom event tents for this beer festival, which total area is 5,000 square meters. This 50m clear span beer tent is the first time on the show in Harbin Beer Festival. It’s 6m side height, 14m ridge height, wind resistance100km/h.

We use the hard extruded aluminum alloy (6061 / T6) to make the tent frame. The roof covers are made of flame-retardant double PVC-coated polyester textile, 850g/sqm, with the functions of Anti-UV, Self-cleaning, anti-aging and so on.

After 10 years’ development, Harbin Beer Festival has already become a famous brand in Harbin. Liri custom event tents together with Harbin Beer Festival has already become a famous brand of Harbin.

Technische Daten der Veranstaltungszelt-Serie
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
40 m5 m11,5 m5 m400 × 120 × 6/7 mm (4-Kanal)
50 m5 m13 m5 m400 × 120 × 6/7 mm (4-Kanal)
55 m5 m14 m5 m400 × 120 × 6/7 mm (4-Kanal)
60 m5 m14,6 m5 m400 × 120 × 6/7 mm (4-Kanal)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Bezugsstoff: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; flammhemmend gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
