40 m – 60 m großes Messezelt für die Luftfahrtbranche

Big Outdoor Exhibition Tent

Über das Projekt

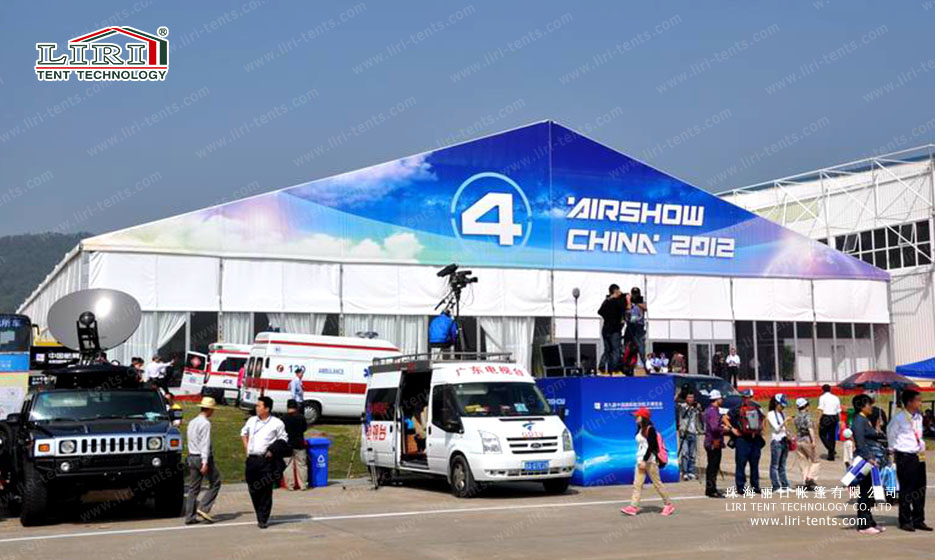

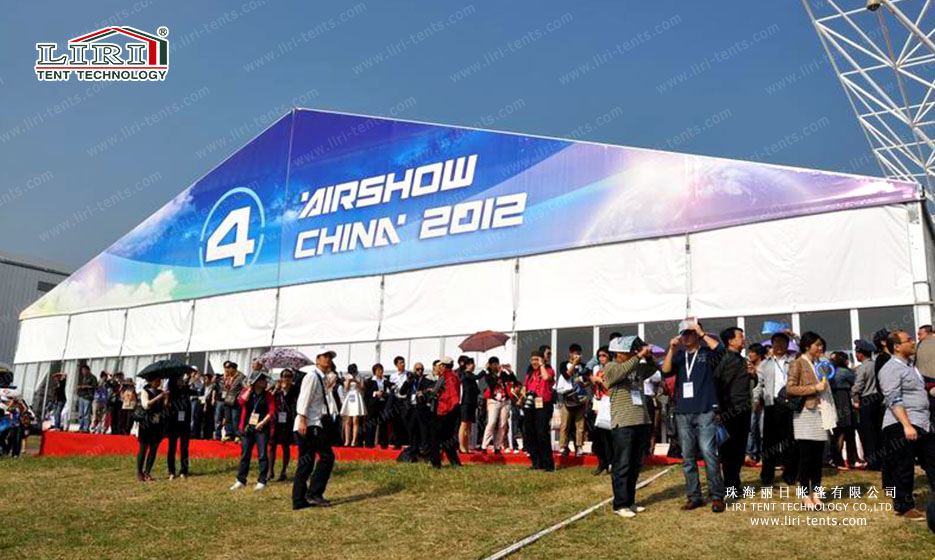

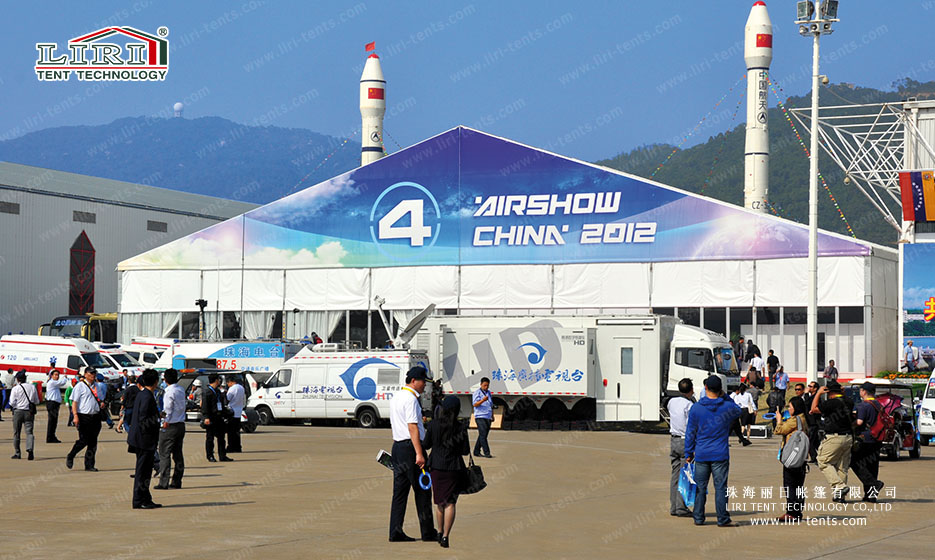

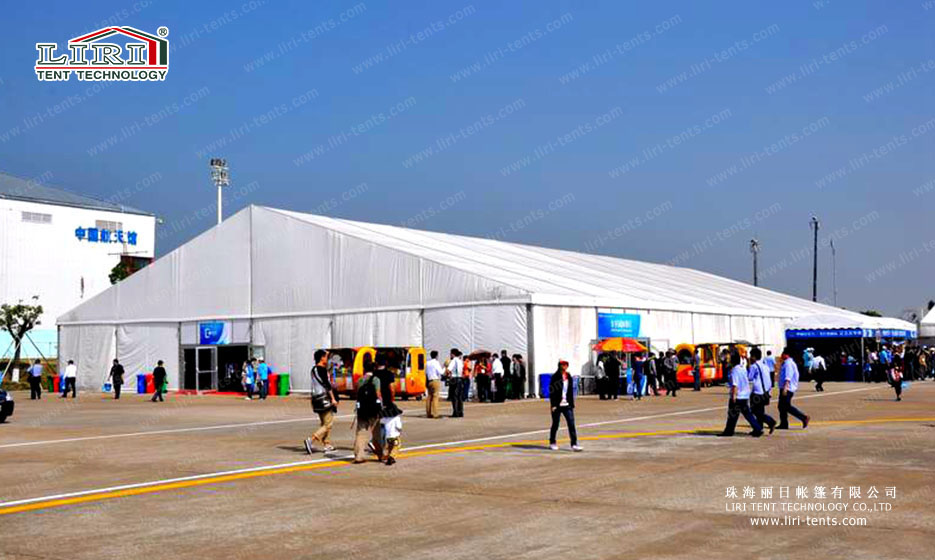

The 9th Air Show China took place in Zhuhai. Last year’s air show used temporary tents from Zhuhai Liri Tent. The air trade show tent was about 200,000 square meters. The exhibition tent’s standard sizes included 40mx30mx25mx20mx10m double pitch roof and a high peak tent.

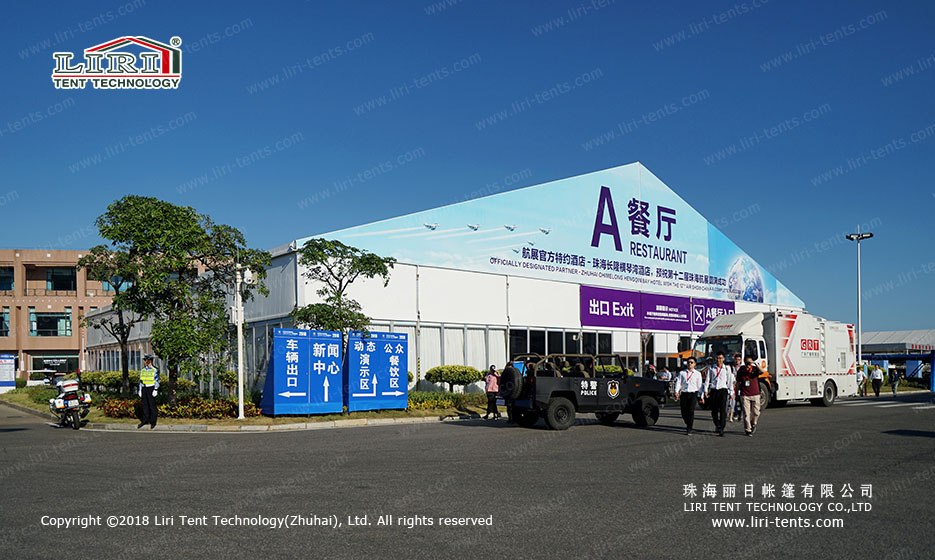

The air trade show tent main purpose included four tents for military weapons, five for temporary offices, and dining hall a and b. It also included a BTB discussion office, selling ticket booth, checking point area, and also big tents with a standard size of 40m and side height of 6m. The tent included illuminated lights, cassette wood flooring, and lining curtains. Zhuhai Liri Tent was the exclusive temporary tent supplier five times for the show and has shown that it is a trustworthy company.

Exhibition Tent Series Specifications
SpannweiteTraufhöheFirsthöheBinderabstandHauptprofil
40 m5 m11,5 m5 m400 × 120 × 6/7 mm (4-Kanal)
50 m5 m13 m5 m400 × 120 × 6/7 mm (4-Kanal)
55 m5 m14 m5 m400 × 120 × 6/7 mm (4-Kanal)
60 m5 m14,6 m5 m400 × 120 × 6/7 mm (4-Kanal)
Merkmale

Rahmenprofile: hochfestes stranggepresstes Aluminium 6061/T6 (15HW)

Bezugsstoff: hochwertiges, doppelt PVC-beschichtetes Polyestergewebe; wasserdicht gemäß 100%; flammhemmend gemäß DIN 4102 B1, M2, CFM; UV-beständig, reißfest, selbstreinigend usw.

Verbinder: robuster feuerverzinkter Stahl

Zulässiger Temperaturbereich: -30 °C bis +70 °C

Windlast: max. 100 km/h

Schneelast: 75 kg/m² (bei starker Dachneigung bleibt kein Schnee liegen)

Einfach auf- und abzubauen

Keine Innenstützen, 100 % nutzbarer Innenraum
